In detail
Modes

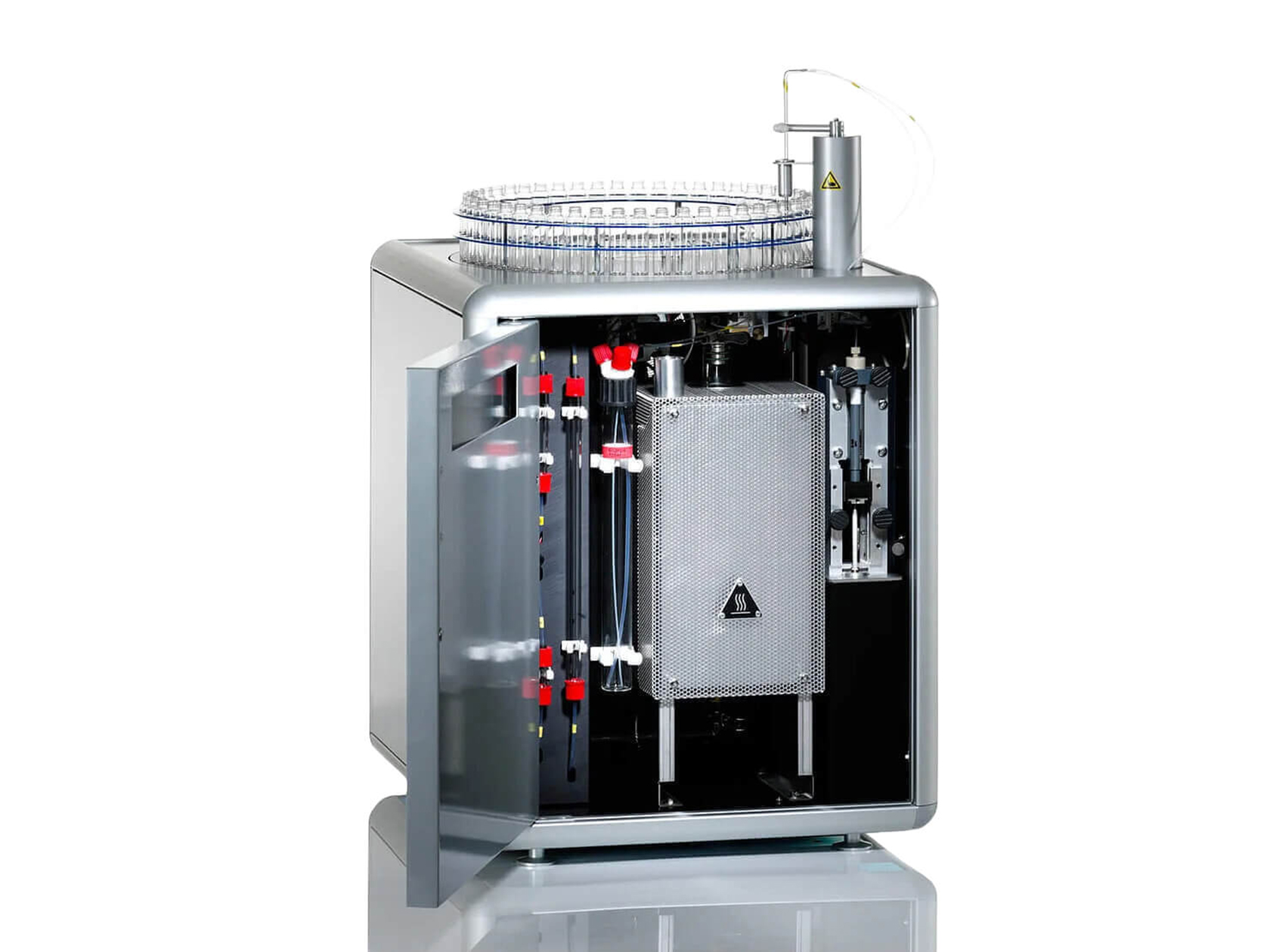

The vario TOC cube is optimized for TOC/TNb analysis. The following modes are available:Liquid mode
The liquid mode offers different autosamplers for up to 80 sample positions. All positions can be stirred and purged. Alternatively, a cost-efficient solution with manual sample change is also available. The change between liquid mode and solid mode is very easy and takes only a few minutes.
Solid mode
The solid mode offers different autosamplers with up to 120 sample positions. Alternatively, a cost-efficient solution with manual sample change is also available. The change between liquid mode and solid mode is very easy and takes only a few minutes.
Analytical specifications
Analysis method
High-temperature catalytic combustion up to 1,200 °C and CO2-measurement with IR detection for TOC, NPOC, TC, TIC, POC (VOC), DOC. TNb determination simultaneously with ECD, IR or CLD (optional).
Modular concept for liquids and solids analysis
Large choice of automatic sample feeders for liquids and solids, alternatively cost-efficient solutions with manual sample change. Quick and easy exchangeable. Can be upgraded at any time.
Supports validation
Complete qualification documentation for IQ, OQ and PQ according to international regulations.
Software with high performance and maximum flexibility
Instrument control with a Windows®* standard PC, control and evaluation software with calibration wizard, system suitability test, statistics and advanced math operations, opt. according to 21 CFR part 11. Integrated maintenance software and comprehensive help menu.
Large detection range
From low ppb to percent. Variable sample volume allows also multipoint calibration from a single standard solution with auto-dilution-effect. Extraordinary linearity over the entire calibration range.
SALTTRAP ensures low maintenance for salt-containing samples
The innovative combustion tube concept enables real matrix separation and offers maximum protection of the combustion tube. Leads to long lifetime and low running costs. Designed for analyses of salt-containing samples, particles, or other complicated sample matrices.
In accordance with official standards
The vario TOC cube operates in full compliance with all relevant standards for TOC, TC, TIC and TNb in liquid samples such as ISO 20236, ISO 8245, EN 1484, EN 12260, SM 5310B, EPA 415.1, and ASTM D7573. Due to the unique solids option, TOC and TC can also be determined in solids like soil or waste according to EN 15936 and ISO 10694.
Easy, compact, and economical
The unique instrument concept is characterized by easy handling and optimized for low maintenance costs – with high flexibility and analytical performance.
*Windows is a registered trademark of Microsoft Corporation, Redmond, USA
Options
Sample injection modules for liquids
Large choice of automatic sample feeders for liquids, fully integrated into the instrument. All positions can be stirred and purged.
- 32 positions with 40 ml vials with septa
- 50 positions with 12 ml vials with screw taps
- 80 positions with 6 ml vials
Alternatively, cost-efficient solution with manual sample change, with or without integrated stirrer available. Quick and easy exchangeable against solids sample feeder. Solids modules
Attachment for TIC-determination in solids soliTIC
Attachment for safe acid digestion of ground solids. Release of the carbonate carbon (TIC) as CO2 for the measurement with the detector of the attached TOC analyzer. Comfortable sample change on permanently installed reactor.
- Sample amount: up to 2 g
- Measuring range: 1 µg - 10 mg TIC absolute
Control and evaluation unit
PC with hard disk, CD/DVD-ROM drive, Windows®** operating system (English), control- and evaluation software vario TOC cube, TFT flat screen monitor, ink jet printer with connection cable.
Sample insertion modules for solids
Full automation for solids analysis with sample feeder for up to 80 samples (max. weight 1 g*) or up to 120 samples (max. weight 300 mg*). Alternatively, cost-efficient solution with manual sample change available. Quick and easy exchangeable against liquids sample feeder.
TNb determination
Choice of different detectors for the simultaneous determination of total bound nitrogen (TNb):
- ECD - TNb detection with a cost-effective electrochemical cell
- IR - TNb detection with infrared detector of high performance and extraordinary linearity
- CLD - TNb detection with chemiluminescence detector
Helpful tools
Choice of additional helpful tools and accessories is available, such as certified liquid TOC standards, combustion tube stand or a single standard tray for easy handling and organization of solid samples.
*depending on sample matrix
** Windows is a registered trade mark from Microsoft Corporation, Redmond, USA
Unmatched analytical performance:
Limit of detection (LOD) of 10 ppm or < 15 μg C
- The soli TOC® cube is the most sensitive instrument in the market and offers an unmatched measurement range from 0.001 – 100 % carbon.
- Reproducible measurements due to precise adjustable temperature with fast heating rates. Temperature is measured where it matters, directly at the crucible.
- Consistent high measurement quality thanks to the use of a post-combustion catalyst. This ensures that even high carbon-content samples are quantitatively oxidized.
- Optimized separation of residual organic carbon (ROC) and total inorganic carbon (TIC) for special samples thanks to integrated carrier gas switching.
Fast & easy analyses: Autosampler for 24/7 operation & automated ash removal
- Autosampler with 89 positions, optimized for unattended 24/7 high-throughput operation.
- Minimized efforts for sample preparation due to the advanced temperature ramping and the crucible technology.
- Automated ash removal and clearly arranged, easily accessible system components minimize maintenance efforts.
Einfachste Probenvorbereitung: Minimierter Aufwand dank Tiegeltechnologie
- Einfache Analyse von Progeneinwaagen bis zu 3 g.
- Auch inhomogene Proben lassen sich zeitsparend einwiegen und präzise analysieren, da größere Probeneinwaagen den Aufwand für Homogenisierung deutlich reduzieren.
- Komfortable TOC-Messungen gemäß DIN EN 15936 mit direkter Ansäuerung der Probe im alternativen Keramiktiegel.
- Verringerte Kosten für Verbrauchsmaterialien durch wiederverwendbare Tiegel.
Unübertroffene Flexibilität: Anpassbar auf Ihre analytischen Anforderungen
- Optionale Bestimmung des Gesamtstickstoffs (TN) möglich.
- Die Analyse von Kohlenstoff in Flüssigkeiten ist für bestimmte Konzentrationen möglich.
- TOC400, ROC und TIC900 kann in nur einem Verfahrensschritt bestimmt werden. Hierzu werden die unterschiedlichen Bindungsformen des Kohlenstoffs mittels Temperaturrampe aus unterschiedlichen Zieltemperaturen unter oxidativen und pyrolytischen Bedingungen unterschieden.
- Alternativ kann auch das klassische Verfahren mittels Ansäuerung zur TIC Entfernung, Trocknung und anschließender TOC-Messung durchgeführt werden.
- DIN 19539 und DIN EN 15936/ISO 10694 konforme Analysen mit nur einem Gerät möglich.
Nutzerfreundliche Wartung: Komfortabel & werkzeuglos
- Wartung in Sekundenschnelle durch übersichtlich angeordnete, leicht zugängliche Systemkomponenten und ein werkzeugloses Klemmverbindungssystem.
- Die automatische Ascheentfernung sowie die herausragende Robustheit und Langlebigkeit des Gerätes reduzieren Wartungs- und Reparaturaufwände.
- Das werkzeuglose Klemmverbindungssystem sorgt jederzeit für ein dichtes, zuverlässiges Gerät ohne Leckage.
