Modes
The rapid MAX N exceed PLUS is optimized for the analysis of:- Nitrogen
- Protein
- Dietary fiber analysis*
*optionally available
Analytical specifications
Maximum sample weight
Up to 5 g or 5 ml
Element concentration range
Large concentration range:
N: up to 500 mg absolute, from 20 ppm to 100 %
Precision
Helium: < 0.05 % absolute (250 mg glutamic acid)
Argon: < 0.15 % absolute (250 mg glutamic acid)
Analysis time
~ 5 min, self-optimizing according to element content and sample weight
Technical specifications
High-temperature combustion with 100 % recovery and detection of the released nitrogen. For nitrogen and protein “Dumas” analysis compliant with current ISO, EN, DIN, AOAC and other national and international standards.
Detector
Thermal conductivity detector (TCD)
Maximum furnace temperature
1,200 °C
Required gases
Helium or argon and oxygen
Sample introduction
Sample introduction via integrated 90-position autosampler, reloadable during analysis.
Instrument control
Windows® based rapid MAX N exceed PLUS operating software with LIMS integration and auto sleep and wake-up function for automated and unattended overnight operation. 21 CFR Part 11 functionality available.*
* optionally available
Dimensions
63 x 55 x 106 cm (W x D x H)
Accessories
Electronic balance
Balance and elemental analyzer form a system. We offer analytical balances from the leading manufacturers with our instruments. Please contact us for further information.

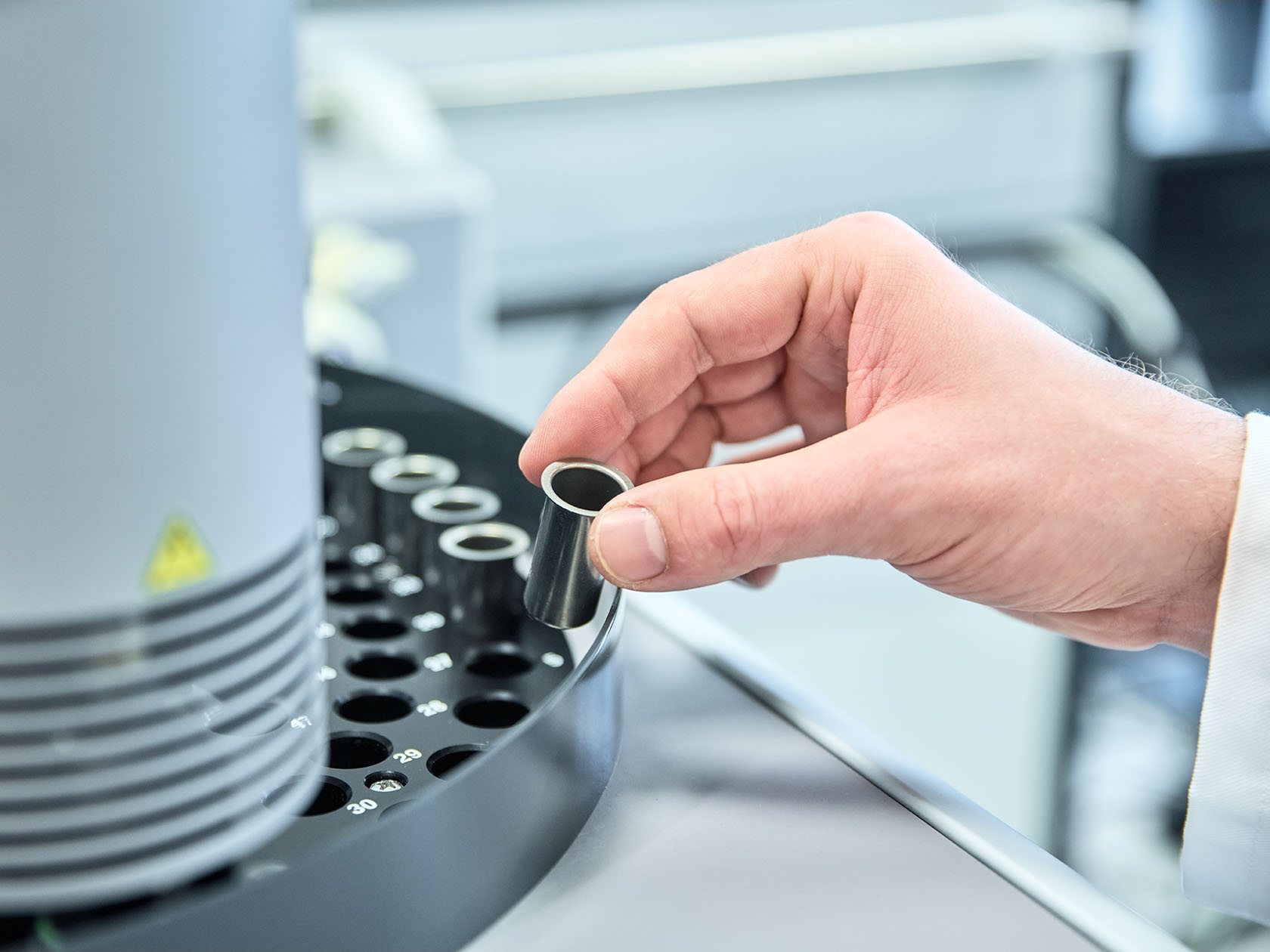

Best-in-class sample throughput:
Designed for maximum laboratory efficiency
- Fewer time-consuming calibration measurements and maintenance events mean more capacity for real sample analysis.
- Unattended 24/7 operation due to the automated 90-position autosampler.
- Fast analysis time of only 5 minutes per sample.
- The analysis of urgent samples can be prioritized without adjusting loaded samples.

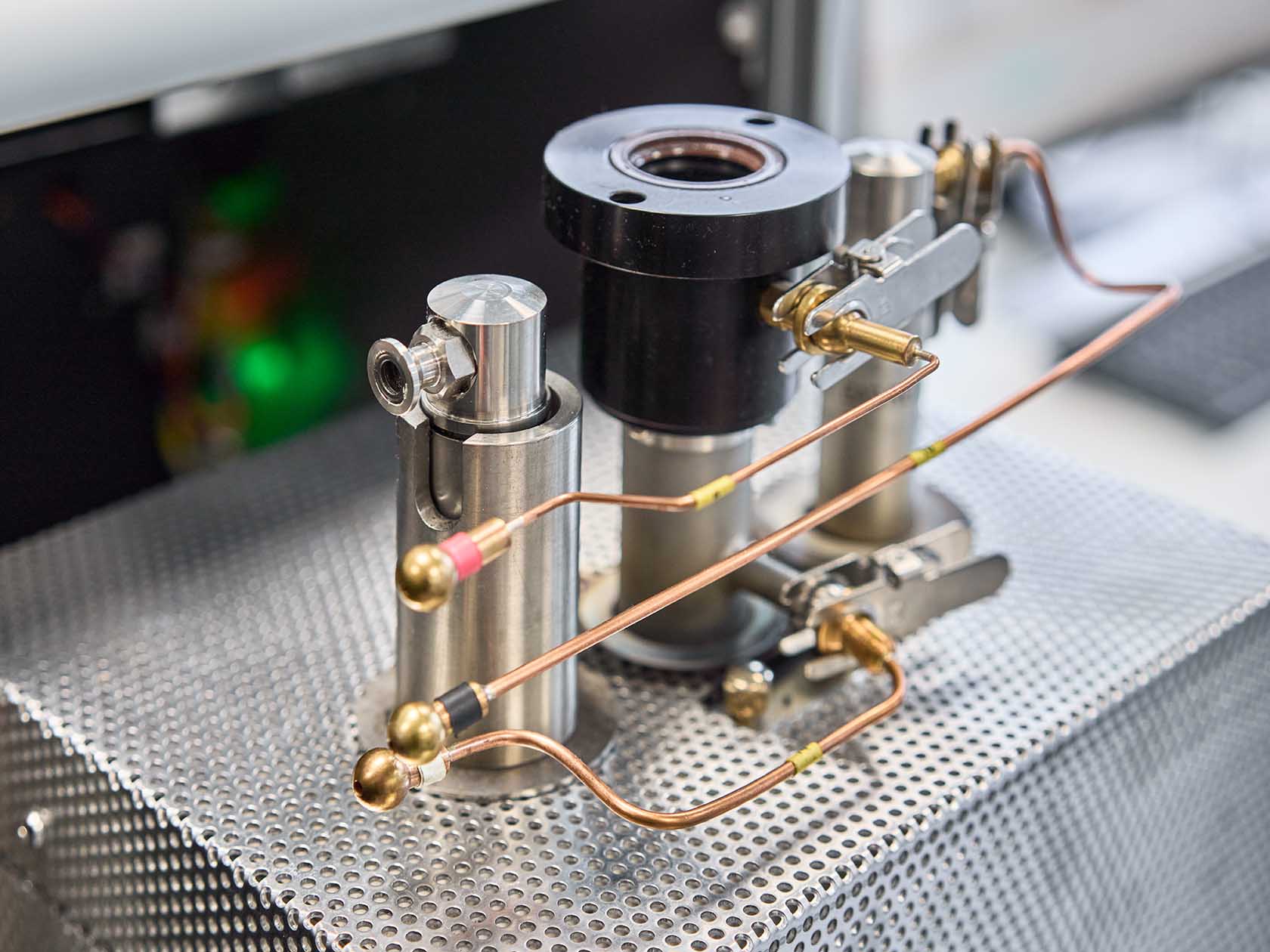

Economical operation:
Reduced consumable consumption
and cost-efficient carrier gas alternative
-
Reduced consumables consumption through advanced EAS REGAINER® technology and extended consumable uptime.
- The use of argon as the carrier gas saves money in comparison to the use of helium.
- Reusable steel crucibles reduce running costs.
Maximum sample flexibility:
Large weighing ranges & sample volumes
- Upright, reusable robust steel crucibles with a large capacity of 5 g / ml.
- Suitable for a wide range of sample types:
From liquids such as milk, beer, soft drinks, juice, and soy sauce to semi-liquids like yogurt and mayonnaise, and solids including meat, cereals, and flour. - Easy preparation of liquid samples directly into the crucibles, no wrapping needed.
- Time-consuming sample preparation like grinding or milling can often be omitted.

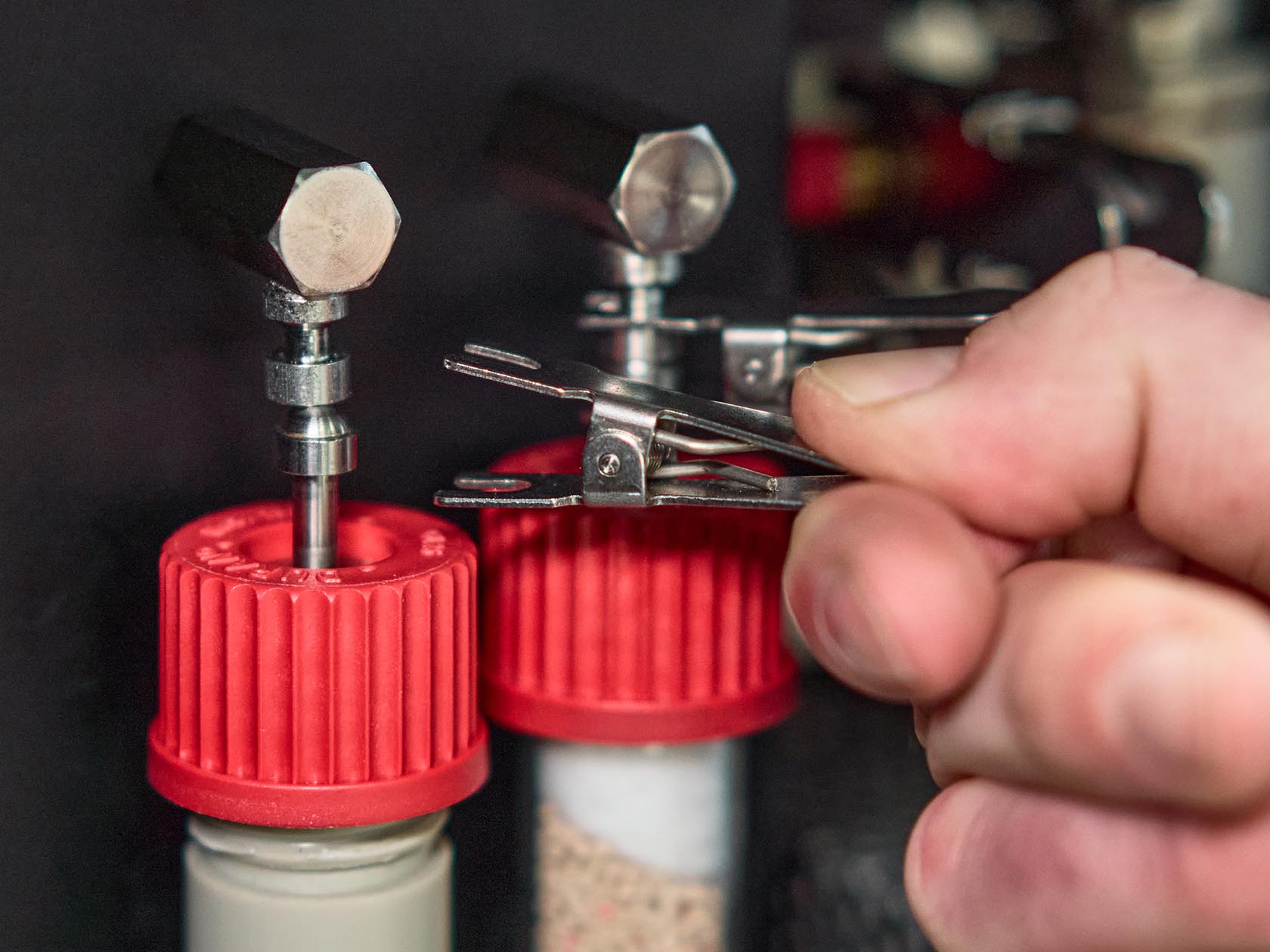

Comfortable, easy use:
Smart workflows & tool-free maintenance
- Improved process control and software with optimized navigation and smart workflows guide users efficiently through every step of the analysis.
- A status display directly on the instrument, automatic system checks, and integrated software assistants ensure quick preparation for analysis and smooth operation.
- Fast maintenance thanks to clearly arranged, easily accessible system components and tool-free clamp connections.
- Comfortable working posture due to the slide-out furnace.
- The outstanding robustness and longevity of the instrument reduce efforts for maintenance and repairs.
- Using the Dumas combustion method eliminates the need for hazardous chemicals, making operation safer and more convenient for laboratory staff.

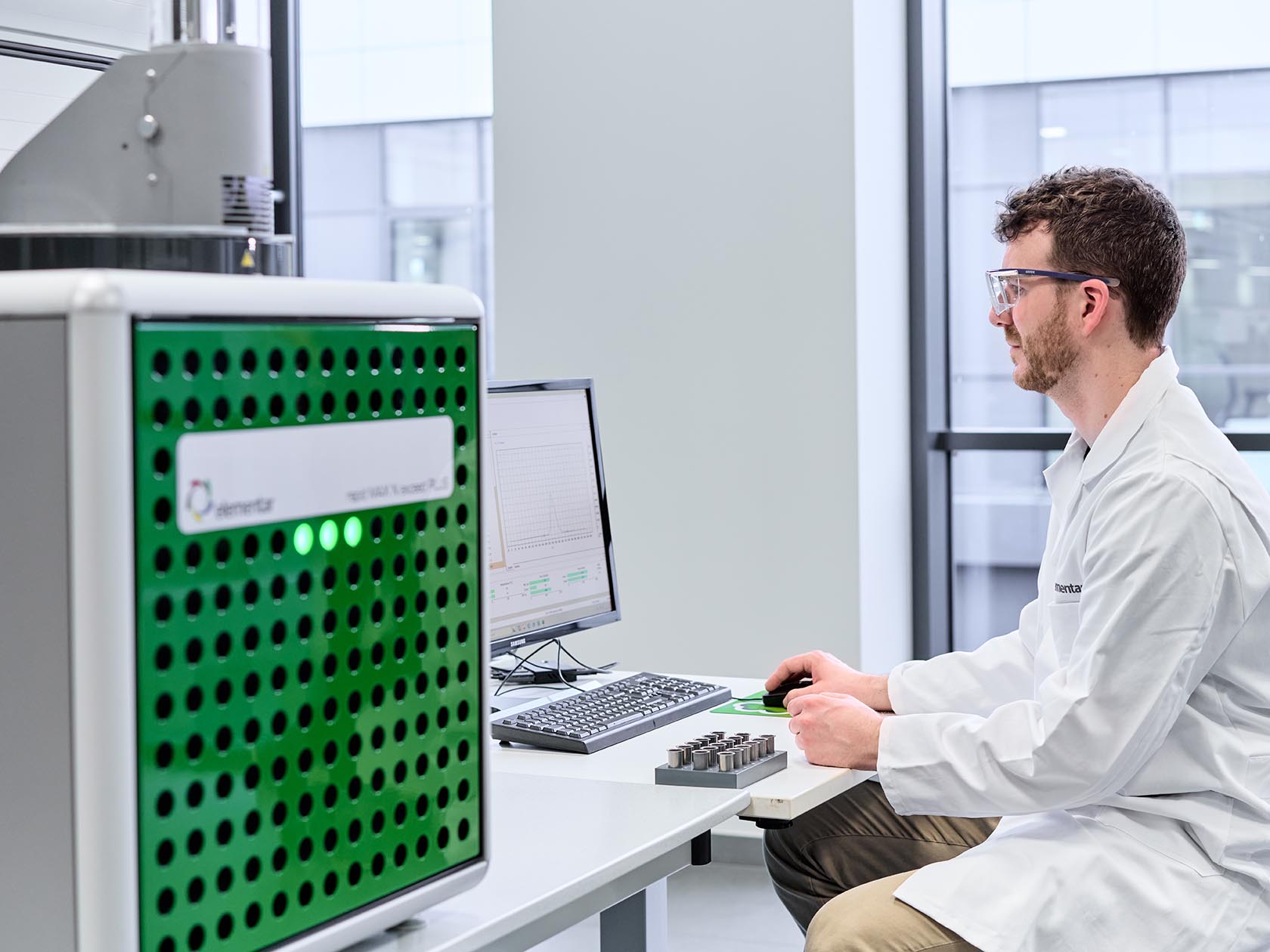

Future-proof investment:
10-year commercial guarantee & spare parts delivery
- 10-year commercial guarantee on the high-temperature combustion furnace and thermal conductivity detector cell of the thermal conductivity detector (TCD)
- Spare parts provision for a minimum of 10 years due to our long-term oriented technical support.
- Outstanding low cost of ownership gives you confidence in your return on investment.
- Consumables can be ordered conveniently through our customer service or online.
